产品介绍

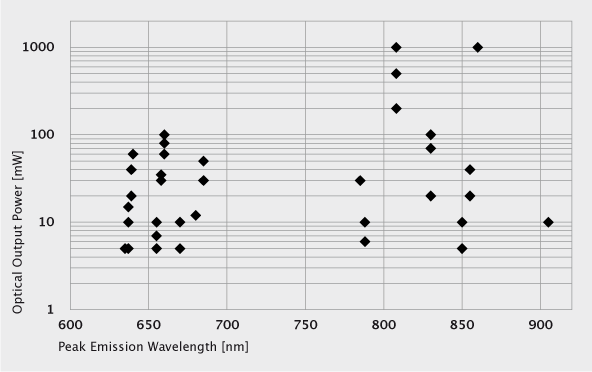

我们提供一系列的波长范围在635nm到905nm之间的激光二极管,高达100mW单模连续操作的大选择覆盖激光器以及高功率多模激光器。

Emitters and Laser diodes of First Sensor

Laserdioden (LDs) von QSI

红色激光二极管

技术规格与PDF数据表

Order # Type #
Package

Peak
WL λp
@ Iop (nm)
Optical output
power Pop
typ. @ Iop (mW)
Operation
current Iop
(mA)[/h]
lth
typ. (mA)
Top.
max. (°C)
516301 LD63D4S-
A/-B/-C
TO-18 637 5 32 23 40
516302 LD63D5S-
A/-B/-C
TO-18 635 5 27 30 50
516303 LD63F5S-
A/-B/-C
TO-18 637 10 45 35 50
516309 LD63G5S-
A/-B/-C-L
TO-18 639 15 50 30 50
516306 LD63H5S-
A/-B/-C
TO-18 639 20 60 30 50
516501 LD65D5S-
A/-B/-C
TO-18 655 5 28 21 50
516502 LD65D5S-
A/-B/-C-L
TO-18 655 5 23 16 50
516503 LD65D6S-
A/-B/-C
TO-18 655 5 40 30 60
516505 LD65D7S-
A/-B/-C
TO-18 655 5 40 30 70
516506 LD65D7S-
A/-B/-C-L
TO-18 655 5 27 20 70
516507 LD65E7S-
A/-B/-C-H
TO-18 655 7 23 16 70
516508 LD65F5S-
A/-B/-C
TO-18 655 10 36 20 50
516509 LD65F6S-
A/-B/-C
TO-18 655 10 60 40 60
516510 LD65F7S-
A/-B/-C
TO-18 655 10 60 40 70
516511 LD65I7S-
A/-B/-C
TO-18 658 30 65 35 70
516512 LD65I7S-
A/-B /-C-H
TO-18 658 35 75 35 70
516601 LD65J7S-
A/-B/-C
TO-18 660 60 90 45 75
516701 LD67D6S-
A/-B/-C
TO-18 670 5 50 40 60
516702 LD67D7S-
A/-B/-C
TO-18 670 5 30 20 70
516703 LD67F6S-
A/-B/-C
TO-18 670 10 50 40 60
516704 LD67F7S-
A/-B/-C
TO-18 670 10 40 20 70
516801 LD68I6S-
A/-B/-C
TO-18 685 30 80 35 60
516802 LD68J6S-
A/-B/-C
TO-18 685 50 100 35 60

红外激光二极管

技术规格与PDF数据表

Order # Type # Package
Peak
WL λp
@ Iop (nm)
Optical output
power Pop
typ. @ Iop (mW)
Operation
current Iop
(mA)[/h]

lth
typ. (mA)
Top.
max. (°C)
517808 LD78M6S-
A/-B/-C
TO-18 780 90 120 30 60
517802 LD78C6S-
A/-B/-C-L
TO-18 785 3 20 13 60
517803 LD78E6HG-Q TO-5 788 6 27 14 60
517804 LD78F6DF-1 TO-18 788 10 25 14 60
517805 LD78F6S-
A/-B/-C
TO-18 788 10 22 12 60
517806 LD78I6S-
A/-B/-C - L
TO-18 785 25 45 15 60
518002 LD80R4S-
A/-B/-C/-D/-E-Z4
TO-18 808 200 250 60 40
518303 LD83O6S-
A/-B/-C
TO-18 830 100 220 70 60
518501 LD85D6S-
A/-B/-C
TO-18 850 5 20 10 60
518502 LD85F6S-
A/-B/-C
TO-18 850 10 25 10 60
518503 LD85H6S-
A/-B/-C
TO-18 855 20 55 20 60
518504 LD85J6S-
A/-B/-C-L
TO-18 855 40 75 30 60
519001 LD90F7S-
A/-B/-C
TO-18 905 10 35 12 70
